Offering longer than normal panel range, these two new items also are significantly different to each other also, as follows:

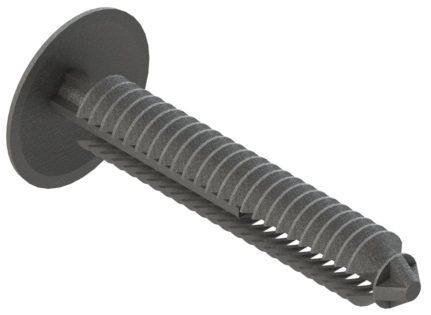

47206 is produced in PA6 and is highly malleable, allowing it to follow "line of sight" through an assembly with difficult manufacturing tolerance stacks. The geometry for 47206 is "non removable" & therefore has to be broken to remove it from its mounting location.

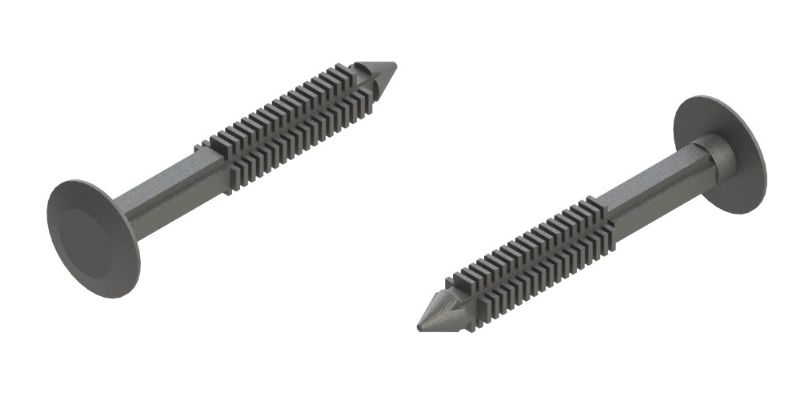

47207 is produced in PA6 and is very rigid & as such is ideal for securing flexible or expanded materials to rigid substrates. The geometry for 47207 provides a "removable" pine tree clip, which can be re-inserted several times.

Both items offer a maximum panel range of 40.0mm which is longest ever offered by GBK & possible in the open market too.


Downloads:

Downloads for this item are listed below, click a file to save/view it.

File Type1501001 - Pine Tree Clips with extended panel range.pdf (111 kb) [Data Sheet]
